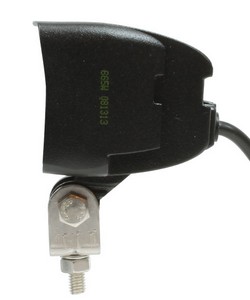

Product Dimensions
-2” (W) x 3 5/8” (H) x 2 3/8” (D) Lamp
Product Installation

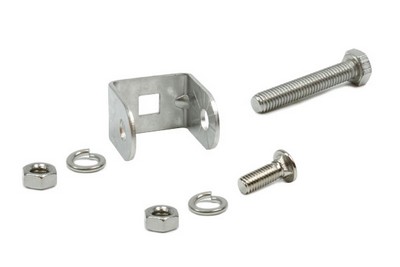

-Multi-Position Mounting Bracket
-Includes 1/4" Stainless Bolt/Nut
Product Construction
-Acrylic Lens
-Die Cast Aluminum Housing
-Black High UV Resistant Powder Coat
-IP67 Waterproof
Product Wiring
-Two-wire Power/Ground Pigtail
-Reverse Voltage Protection
Product Light Output
-Flood Beam Pattern
-1 x 10 Watt LED (30,000 Hour Rated)
-800 Lumen Output
-Beam Penetration Up To 200 Feet
Product Operation
-9-36 VDC Operating Voltage
-.91 Amp Draw At 12 Volts
Product Compliance
-RFI/EMC
-RoHs Compliant
-ASTM B117 Corrosion Protection Compliant
